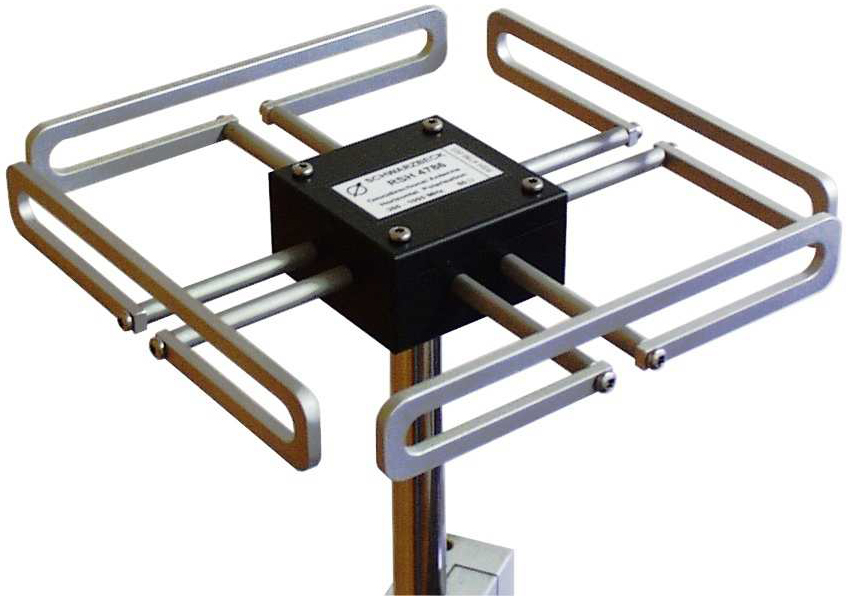

Schwarzbeck RSH 4786 Horizontal Polarised Omnidirectional UHF Antenna View larger

Schwarzbeck RSH 4786 Horizontal Polarised Omnidirectional UHF Antenna

New

  • 350 - 1050 MHz Frequency Range
  • Horizontal Polarised Omnidirectional Antenna
  • For mobile and stationary receive and transmit applications
  • A typical application is the DVB coverage measurement;
  • Using measurement vehicles

More details

Request Quote

Request Quote/More Info

PDF Downloads

Data Sheet

PDF Downloads (214.2k)

Test Equipment Description

Horizontal polarised omnidirectional UHF Antenna for mobile and stationary receive and transmit applications. A typical application is the DVB coverage measurement using measurement vehicles.

Specifications
Frequency range470 - 860 MHz
Useable Frequency Range350 – 1050 MHz
Connector female50 Ω N
Mounting tube22 mm
Isotropic gaintyp. -2...+/- 3 dBi
Antenna Factor23 ... 32 dB/m
Deviation from perfect omnidirectional pattern< +/- 2 dB
Vertical pattern Dipole shape
Max. Input Power100 W
Weight1 kg
Dimensions240 x 240 x 260 mm
Recommended Spacing between
Elements and Rooftop		≈ 220-280 mm


Isotropgewinn

Antennenwandlungsmaß

VSWR
